DICOM/ THERMAL/ DIGITAL PRINTER
Broke-up the Monopoly of foreign imager
The launching of KND-8900 Dry Medical Imager broke-up the long-term
monopoly of medical imagers and films
by several multinational corporations. Konida, a famous China
domestic brand provides you high quality
medical imaging solutions with the Imager and Dry Medical Film as
always.
With the most environmental direct thermal printing method
With the most environmental direct thermal printing method, do not
use any chemical liquid during the imaging.
No silver halide or other metal components in Konida dry film.
Before, during and after printing process, does
not produce any chemical waste and toxic substances or gas. Film
disposed as household waste instead of
industrial.
With high-resolution imaging
The thermal imaging layer on the film was consist of microcapsules
which were formed by nano raw material,
with high resolution thermal head, the final image resolution is
320dpi
Applicable to multi-sizes lucky dry medical film
KND-8900 imager was equipped with 2 magazines, each magazine
accommodates 100 films, and the imager
is applicable 4 sizes film: 14*17inch,11*14inch,10*12inch and
8*10inch.
Daylight operating
With unique formulation technology, Konida dry medical film loading
and printing can be carried out in daylight
without darkroom,convenient operation will reduce the technician’s
labor strength.
Chinese and English optional display
The operator could chose Chinese or English display on the 5 inch
LCD screen, make KND-89001imager
operation easy and convenient.
thermal film printer machine, thermal camera medical ,second hand x
ray machine
| KND-8900 MEDICAL FILM PRINTER |
|

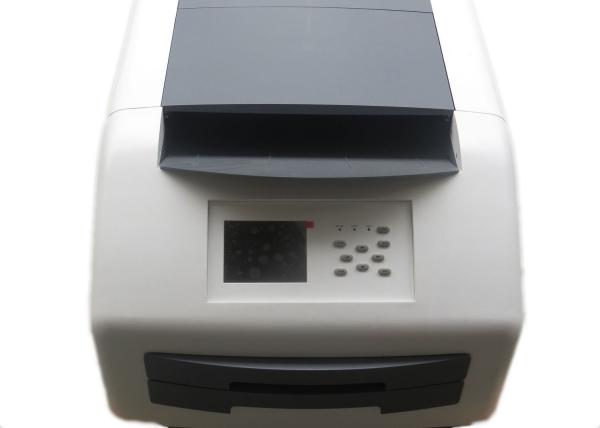

KND-8900 medical film printer is a kind of thermal imaging printer
which can output the imagine in dicom form from internet |
|
|
equipment characteristics and technical parameters | |
| printing technique | direct thermal imaging(easy daylight loading) |
| geometrical | 320dpi (12.6pixel/mm) |
| film throughput | 60sheets/hour(14*17), 90sheets/hour(8*10) |
| resolution | 12bit(4096 gradation) |
| film supply tray | 2 supply trays,100 sheets per supply tray |
| film output tray | 1 output tray, 50 sheets per output tray |
| film size | 8*10inch,14*17inch,and any size between them |
| film type | medical thermal film (blue or clear base) |
| film input cassette | all the film prepackaged in factory sealed input cassette |
| port | 10/100base-T Ethemet(RJ-45) |
| interface | dicom |
| image format | dicom |
| image quality | use the built-in densitometer automatic calibration |
| image control | contrast/grayscale/polar/ratate/saturation/scale |
| control panel | light background LCD display,display online, alarm,fault and state |
| key switch | power supply and menu navigation button |
| processor | intel |
| internal memory | 2 GB |
| disk capacity | 320 GB |
| power requirements | auto ranging 100-240V~50/60 HZ |
| weight | 40kg |
| size (mm*mm*mm) | 410*566*726 |
| work temperature | 15-30℃ |
| work humidity | 10%-70% |
| optimum temperature | 22.2℃ |
| humidity | 10%-80% |
| storage temperature | .-22 to 50℃ |
| |
| |
