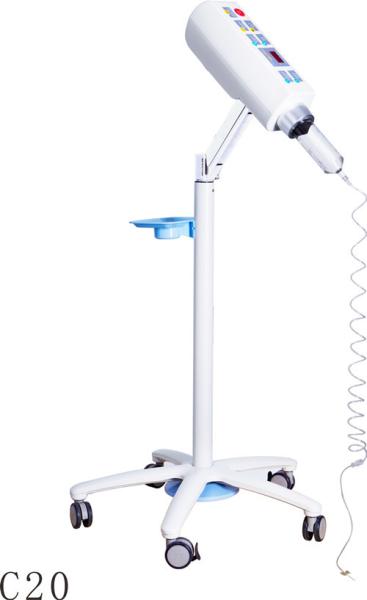

Single syringe CT high pressure syringe multi-slice CT matching C10/20 Injection System

Product Usage

It can be matched with various multi-slice CT (MS-CT) (spiral CT, multi-detector CT, multi-row CT, etc.) to enhance CT. Use automatic injection system to obtain more diagnostic information. For example, the enhanced scan of the abdomen, select the appropriate rate, dose and delay time, one enhanced injection can obtain the enhanced scan images of the hepatic arterial phase, venous phase and parenchymal phase.

Comprehensive and effective safety design

1. Precise control of the injection speed and dose;

2. Set the pressure limit to ensure that the pressure is within the safe range during the injection;

3. Remote control push injection to reduce harmful radiation to the operator;

4. Do not push until the air is exhausted.

Easy to use

1. Large and true color display, graphic and text interface is intuitive and eye-catching;

2. Carefully design the operation function keys, and the fewest keys realize all functions.

Human structure

1. The rack can be flexibly moved and placed in the most suitable position;

2. Add accessory tray, place extension tube, medicine bottle, etc.

Technical Parameter

Power requirements: AC 198～242V, frequency 50/60Hz, 200VA

Pressure limit: 50～350psi (345～2415kPa), step size 1psi (1kPa)

Injection rate: 0.1～10.0ml/sec., step length 0.1ml/sec.

Syringe: 100ml disposable syringe (C20 200ml disposable syringe or 100ml hand-push syringe (with syringe conversion bracket))

Injection dose: 0.1ml～ syringe capacity
